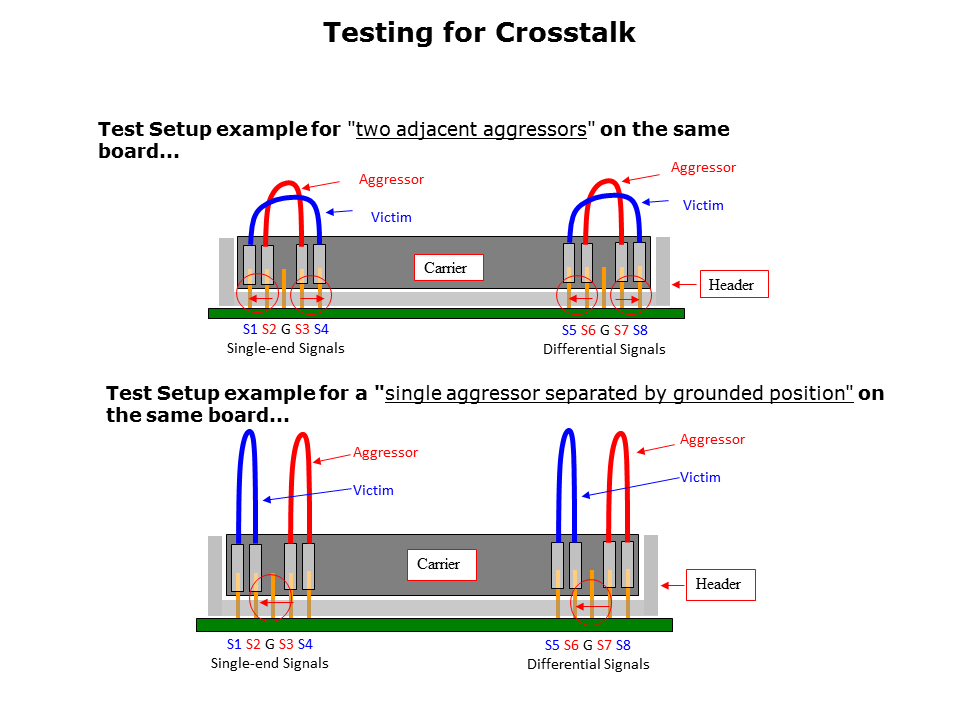

These two test set-ups for typical crosstalk evaluation feature either two adjacent aggressors with victims, or a single aggressor/victim separated by a ground position. Note, the test setups shown utilize one test board; however, multiple boards may be used for board-to-board applications utilizing separate ground planes.
PTM Published on: 2009-04-20
