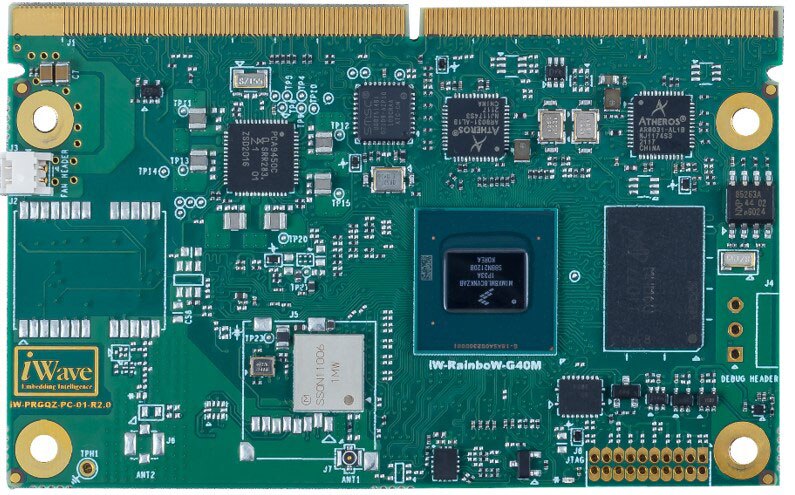

i.MX 8M Plus SMARC System on Module

iWave's i.MX 8M Plus SOM is based on the NXP i.MX 8M Plus application processor. It includes a powerful Arm Cortex-A53 processor capable of running up to 1.6 GHz and a Cortex-M7 core for real-time processing. It integrates an NPU of 2.3 TOPs that accelerates machine learning inference.

The i.MX 8M Plus Quad/QuadLite/Dual SMARC SOM integrates Quad/Dual Cortex-A53 at up to 1.8 GHz, NPU with up to 2.3 TOPs, two camera inputs and an HDR-capable image signal processor (ISP) capable of 375 MPixels/s, H.265 1080p60 decode, 3D and 2D graphic acceleration, HiFi 4 DSP, MIPI DSI, LVDS (4-/8-lane), HDMI TX, USB3.0, PCIe® Gen3, On SOM dual 10/100/1000 Mbps Ethernet PHY with TSN support on one port, IEEE 802.11 a/b/g/n/ac Wi-Fi/BT 5.0 module, USB 2.0 Hub, and GNSS module.

Features

• CPU
• i.MX 8M Plus Quad: 4x Cortex-A53, 1x Cortex-M7, GPU, VPU, NPU, ISP, and HiFi4 audio DSP
• i.MX 8M Plus Quad Lite: 4x Cortex-A53, 1x Cortex-M7, and GPU
• i.MX 8M Plus Dual: 2x Cortex-A53, 1x Cortex-M7, GPU, VPU, NPU, ISP, and HiFi4 Audio DSP
• i.MX 8M Plus Q/QL/D SoC with 64-bit Armv8-A architecture
• NPU with up to 2.3 TOP/s neural network performance
• IEEE 802.11a/b/g/n/ac Wi-Fi and Bluetooth 5.0
• Dual 1000/100/10 Mbps Ethernet (TSN support on one port)
• GNSS receiver module GPS/GLONASS/Galileo/BeiDou (optional)
• Excels in ML vision, edge intelligence, and advanced multimedia applications
• Dual or quad-core Arm Cortex-A53 up to 1.8 GHz and M7 at 800 MHz
• 10+ years of product longevity program
• SMARC v2.1.1 compatible SOM
