Rotary-Slide11

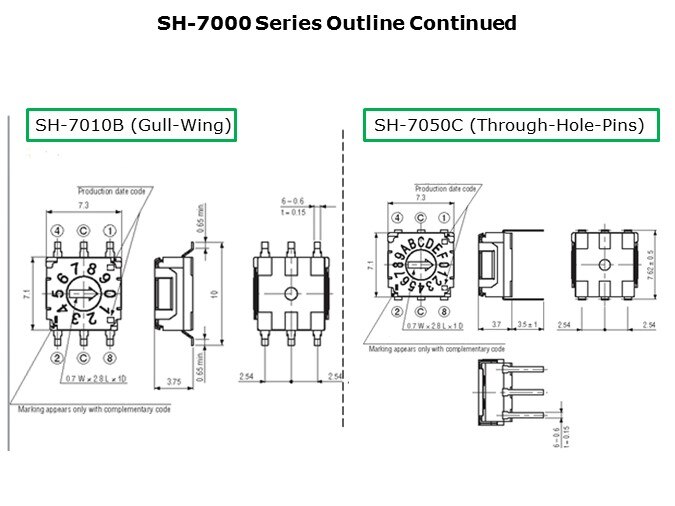

Shown here are the dimensions of the SH-7000 series with Gull-Wing  and Through-Hole-Pin terminations. A common switch body design is used for all termination styles and code formats.

PTM Published on: 2014-05-13
