PJ 2nd Generation Industrial Open Frame Power Supply

Product Highlights > PJ 2nd Generation Industrial Open Frame Power Supply

            PJ 2nd Generation Industrial Open Frame Power Supply
                    Delta PJ2 Series 27 mm low profile, 200% power boost, and SEMI F47/PSE compliant open frame power supplies

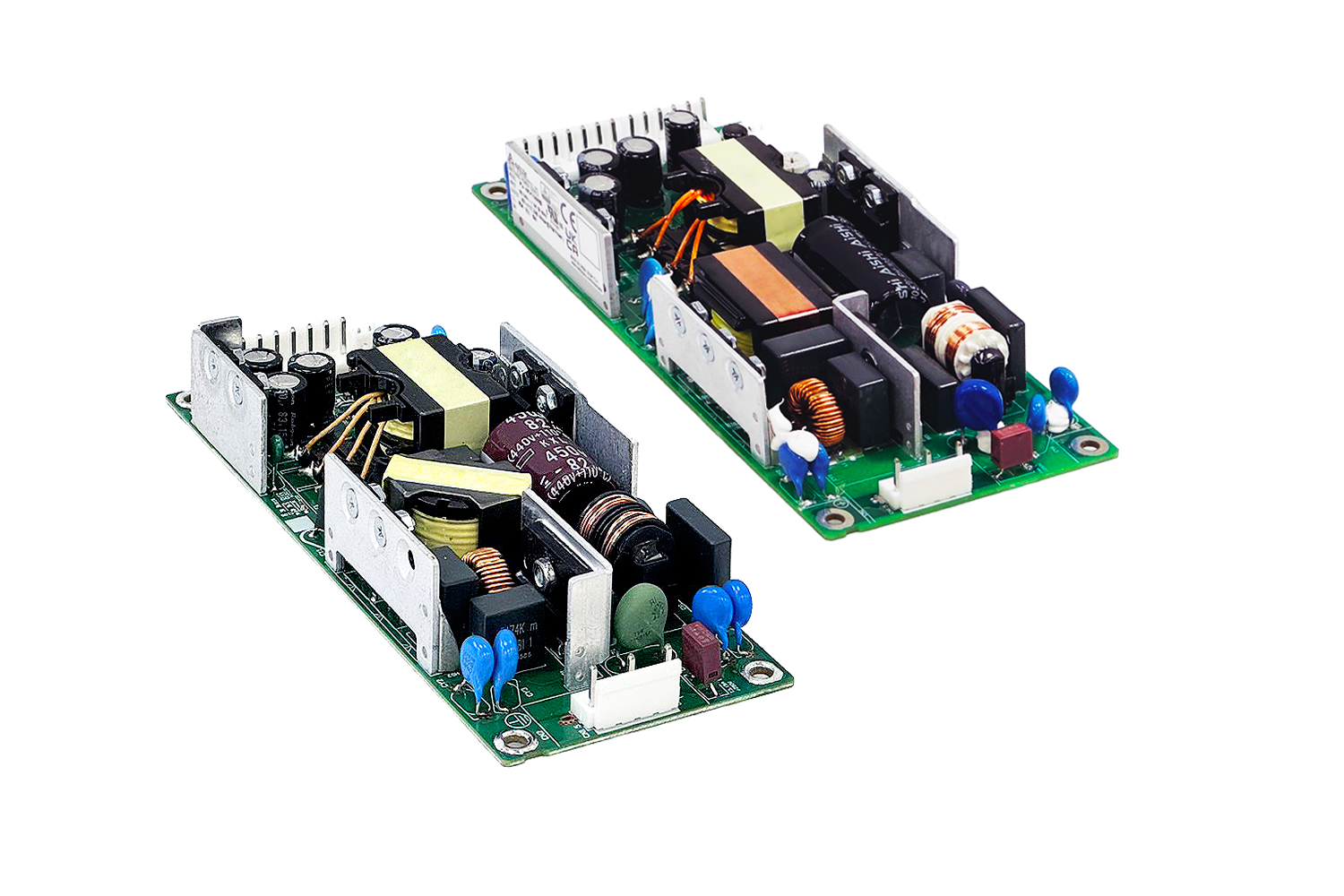

Delta Electronics PJ 2nd Generation (PJ2) series features a compact, low-profile design (27 mm) optimized for space-constrained industrial applications. It delivers a robust 200% power boost for 10 seconds, ensuring reliable startup for high inrush loads and eliminating the need to oversize the power supply. The series is SEMI F47 compliant at 200 V_AC for voltage sag immunity and includes built-in active PFC. Reliability is ensured with conformal coating on PCBAs to protect against dust and chemical pollutants. Additional features include Remote On/Off control and low leakage current. The PJ2 series is fully compliant with Japan PSE (DEN-AN) and meets major international safety standards, including EN/UL 62368-1.

Highlights and Features

Low profile design (27 mm height)
200% power boost for 10 seconds
Japan PSE (DEN-AN) compliant
Built-in remote ON/OFF

Built-in active PFC (>0.99)
Conformal coating on PCBAs
SEMI F47 compliant at 200 V_AC

Applications

Test and measure equipment
Cobot arms

Conveyors and logistics
Refrigerated display cabinets
