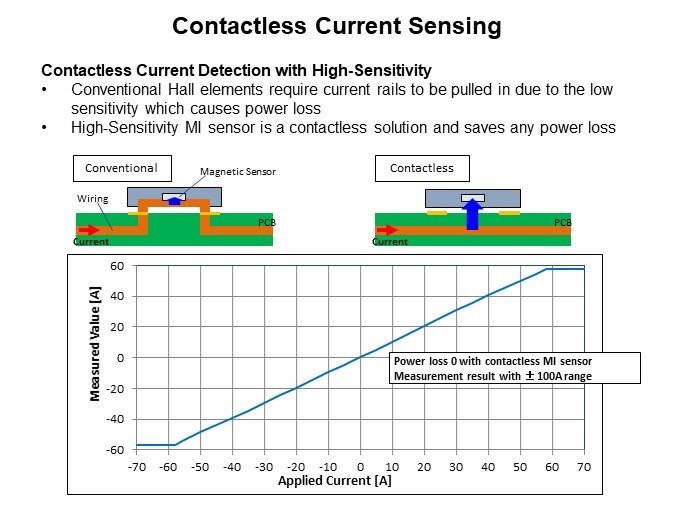

Image of ROHM Semiconductor Contactless Current Sensor - Slide4

MI technology is magnitudes more sensitive than their competitors. Because of this conventional Hall element based current sensors require power rails to be pulled in closer to the internal sensor element which causes power loss. However, because of the high sensitivity of the MI sensor, this technology can act as a completely contactless solution and saves any power loss and can extend the overall sensing range of the solution since it is not limited by the package’s power dissipation restrictions.

PTM Published on: 2020-06-23
