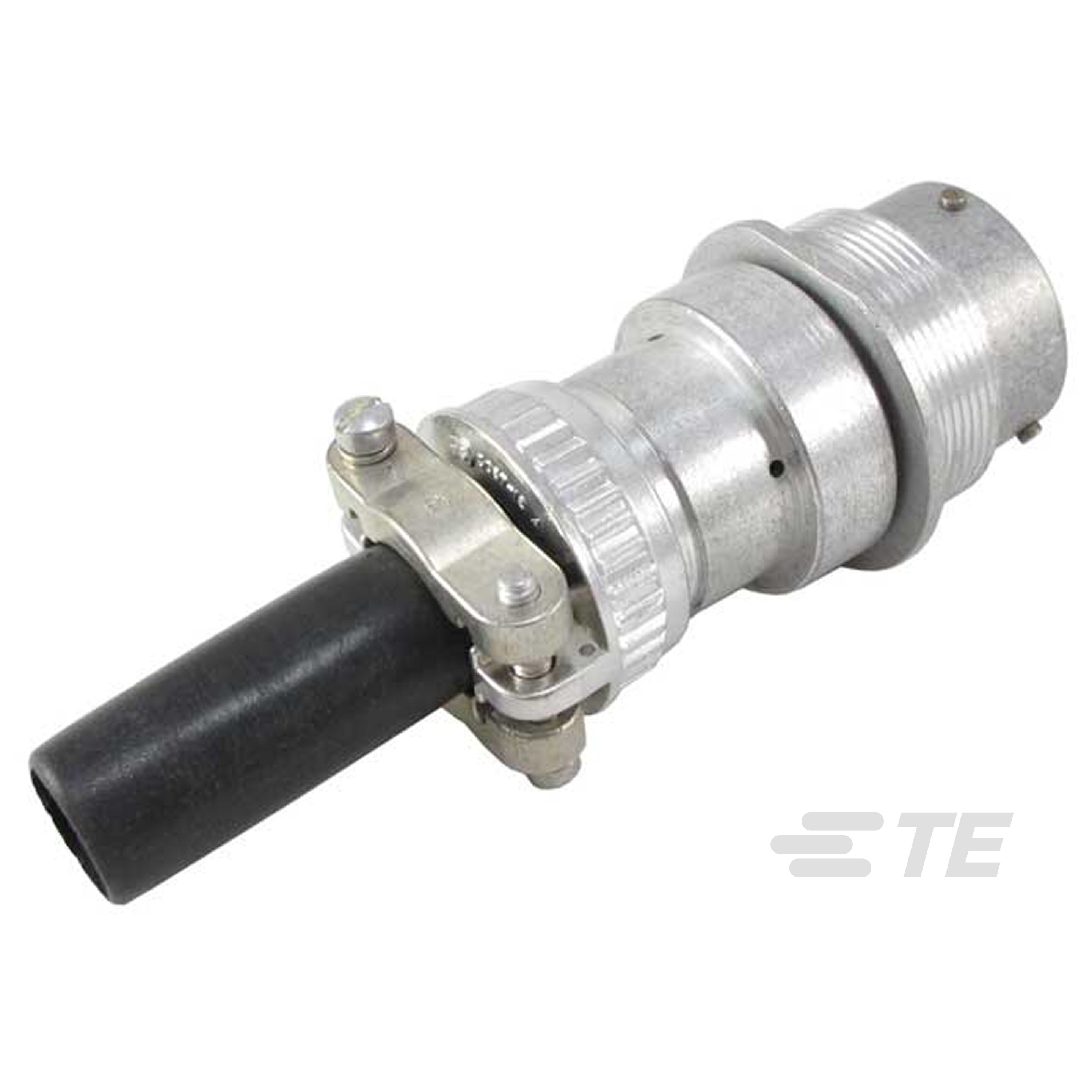

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
HD36-18-14PN-059 | |
|---|---|
DigiKey Part Number | 1734-1297-ND |
Manufacturer | |
Manufacturer Product Number | HD36-18-14PN-059 |
Description | CONN PLUG HSG MALE 14POS INLINE |
Manufacturer Standard Lead Time | 13 Weeks |
Customer Reference | |
Detailed Description | 14 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut |
Datasheet | Datasheet |
EDA/CAD Models | HD36-18-14PN-059 Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | TE Connectivity Deutsch Connectors | |
Series | ||
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug Housing | |
Type | For Male Pins | |
Number of Positions | 14 | |
Shell Size - Insert | 18-14 | |
Shell Size, MIL | - | |
Contact Type | Crimp | |
Contact Size | 16 | |
Mounting Type | Free Hanging (In-Line) | |
Mounting Feature | - | |
Fastening Type | Bayonet Lock | |
Orientation | Keyed | |
Shell Material | Aluminum | |
Shell Finish | - | |
Housing Color | Silver | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Material Flammability Rating | - | |
Features | Backshell, Cable Clamp, Coupling Nut | |
Shielding | Unshielded | |
Note | Contacts Not Included | |
Includes | - | |
Insert Material | Polyetherimide (PEI) | |
Contact Shape | Circular | |
Operating Temperature | -55°C ~ 125°C | |
Base Product Number |
In-Stock: 178
Check for Additional Incoming Stock
Quantity
All prices are in EUR
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | €35.52000 | €35.52 |
| 10 | €30.19200 | €301.92 |
| 25 | €28.30240 | €707.56 |
| 50 | €26.95220 | €1,347.61 |
| 100 | €25.66720 | €2,566.72 |
| 250 | €24.06240 | €6,015.60 |
| Unit Price without VAT: | €35.52000 |
|---|---|
| Unit Price with VAT: | €44.57760 |
