Automotive Qualified Recovery Rectifiers for High-Temperature Applications
Nexperia's recovery rectifiers deliver high power density while minimizing reverse recovery time and loss
Nexperia's recovery rectifiers deliver high power density while minimizing reverse recovery time and loss for efficient switching and power conversion applications in automotive, industrial, and consumer markets.

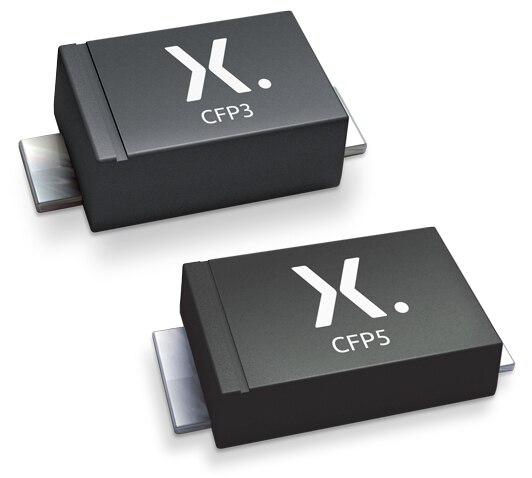

The portfolio consists of 200 V hyperfast switching parts with optimized recovery time (trr) of 25 ns housed in CFP3 and CFP5 clip-bond packages. Offering a low voltage drop (VF @ IF max ~ 1 V) and low leakage current, also at high temperature of up to +175°C. All types are high-speed switching capable and AEC-Q101 qualified.
Features
- Robust and thermally efficient
- High current pulse capability due to solid copper clip-bond
- High power density/high-efficiency planar technology
- Low magnetic inductance optimizes switching behavior
- Just 1 mm package height for thin PCB designs
- More than 50% footprint savings – CFP3 compared to SMA
Applications
- Polarity protection
- DC/DC conversion
- AC/DC conversion
- Freewheeling of inductive load
- Standard switching application
- High-speed switching application
Resources
Automotive Qualified Recovery Rectifiers
| Image | Manufacturer Part Number | Description | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | PNE20020ERX | DIODE STANDARD 200V 2A SOD123W | 980 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1898 - Immediate | $0.56 | View Details |
| | PNS40010ER,115 | DIODE STANDARD 400V 1A SOD123W | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.8 µs | 559 - Immediate | $0.49 | View Details |
Published: 2019-08-27
