ULP Type Datasheet by Cornell Dubilier Knowles

Type ULP, 2 and 3 mm Ultra Low Profile Aluminum Electrolytic Capacitor, 85 °C
Specifications
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type ULP, 2 and 3 mm Ultra Low Profile Aluminum Electrolytic Capacitor, 85 ºC
Highlights
- 2 or 3 mm profile
- High energy density .4 J/cc
- Replaces banks of solid tantalum chips
- 3000 hr life @ 85 ºC without voltage derating
Temperature Range –40 °C to 85 °C, at 100% rated voltage
Surge Voltage 120% of the rated working Vdc
Capacitance Range 500 μF to 24,000 μF
Capacitance Tolerance ±20% at 120 Hz and 25 °C
DC Leakage Current After a five minute application of the rated working voltage at +25 °C :
ɪ ≤ 0.001CV
Moisture Resistance After 500 hours storage at +60°C and 90% to 95% RH with or without load, the
capacitor will meet the following limits:
∆C = +20%/–20% of the initial measured value.
ESR ≤ the initial specified value
DCL ≤ the initial specified value
DC Life Test Apply rated DC working voltage at 85°C for 3000 hours, and then stabilize
them to +25°C.
Capacitors will meet the following limits:
ΔC = ±20% of the initial measured value
ESR ≤ the initial specified value
DCL ≤ the initial specified value
Shelf Life Test Shelf life is typically 5 to 10 years. Accelerated test:
After 500 hours at 85°C, capacitors will meet the initial limits after stabilization
at 25°C.
Vibration
Mounting: Vibration capability is dependent upon mounting restraint. To
achieve the high vibration levels as published on right, additional mounting
restraint is required.
MIL-STD-202, Meth. 204, Sine Swept, IEC 60068-2-6 Standard ULP: 10g
Low Temperature Characteristics Impedence Ratio Z-40 º/ Z+25 ºC @120 Hz
≤ 10 (4 Vdc - 10 Vdc)
≤ 4 (16 Vdc - 63 Vdc)
Altitude 60,000 feet max
At 2 and 3 mm thin, type ULP offers the highest energy density
available in a low profile aluminum electrolytic. It’s ideal for the lowest
profile circuits where high capacitance is needed for bulk storage. Look
to type ULP to replace arrays of SMT solid tantalum capacitors.
High Energy Density, REACH Compliant
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Vibration Test Level
The specimens, while deenergized or operating under the load conditions
specified, shall be subjected to the vibration amplitude, frequency range,
and duration specified for each case size.
Amplitude
The specimens shall be subjected to a simple harmonic motion having an
amplitude of either 0.06-inch double amplitude (maximum total excursion)
or peak level specified above, whichever is less. The tolerance on vibration
amplitude shall be ±10 percent.
Frequency Range
The vibration frequency shall be varied logarithmically between the
approximate limits of 10 to 2,000 Hz.
Sweep Time and Duration
The entire frequency range of 10 to 2,000 Hz and return to 10 Hz shall be
traversed in 20 minutes. This cycle shall be performed 12 times in each
of three mutually perpendicular directions (total of 36 times), so that
the motion shall be applied for a total period of approximately 12 hours.
Interruptions are permitted provided the requirements for rate of change
and test duration are met.
Typical Weight Case DA - 17g, Case DB - 22g
Terminals Flexible printed circuit 16 Amps for 1 second Max (ɪ2t = 250 A2s)
Case Material Cu/Ni/Zn (nickel - silver)
Type ULP, 2 and 3 mm Ultra Low Profile Aluminum Electrolytic Capacitor, 85 ºC

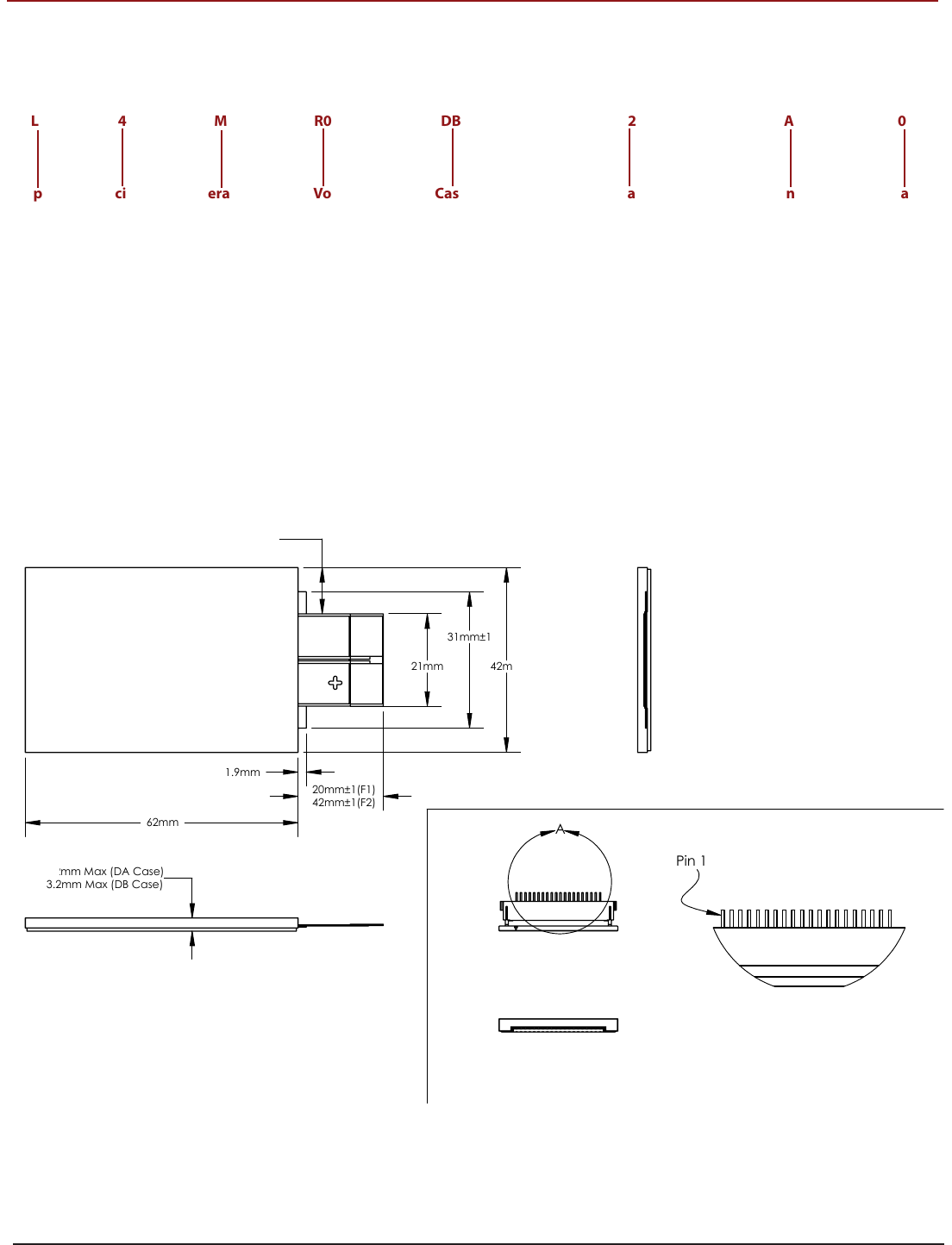

42mm
2x 10.5mm±1
21mm
1.9mm
31mm±1
62mm
20mm±1(F1)
42mm±1(F2)
2.2mm Max (DA Case)
3.2mm Max (DB Case)
A
DETAIL A
SCALE 2 : 1
Pin 1
Mating Connector
(Molex 0522712079 or equivalent)
1-9 = Negative
10,11 = NC
12-20 = Positive
p (i era Va (as a n :Hmmfl 2 1 mm 42m 19mm» 20mm (FH ammurz; 62mm mm MEX [DA C0591 (Aw Pin l 3 2mm MEX [DB C6561 llllllllllllllllllll g # '[l 11' HHHHHHHMHHHMHHHM 1‘
Part Numbering System
Outline Drawing
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
ULP 243 M 4R0 DB F2 A 0
Type Capacitance Tolerance Rated Voltage Case Lead Mounting Style Insulation
ULP 243 = 24,000 µF ±20% 4R0 = 4.0 Vdc DA = 42 x 62 x 2 mm F1 = Flex - 20pin (20 x 21 mm) A = None 0 = None
016 = 16 Vdc DB = 42 x 62 x 3 mm F2 = Flex - 20pin (42 x 21 mm) 1 = Polywrap
Type ULP, 2 and 3 mm Ultra Low Profile Aluminum Electrolytic Capacitor, 85 ºC
42mm
2x 10.5mm±1
21mm
1.9mm
31mm±1
62mm
20mm±1(F1)
42mm±1(F2)
2.2mm Max (DA Case)
3.2mm Max (DB Case)
A
DETAIL A
SCALE 2 : 1
Pin 1
Mating Connector
(Molex 0522712079 or equivalent)
1-9 = Negative
10,11 = NC
12-20 = Positive
2.5
Ratings Cap vs. Frequency & Temp ULP113MOIGDBFIB lzmou mama - some 60000 - at: (ur) «own 20mm on - ‘ 1 m we moo Freq nu) —as —55 i4; —25 —0 —-2n i-au iAss
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Ratings
Type ULP, 2 and 3 mm Ultra Low Profile Aluminum Electrolytic Capacitor, 85 ºC
Typical Performance Curves
Voltage Cap (µF) Catalog Part Number
ESR max
25 °C mΩ
120 Hz
Surge
25 ºC Vdc
2 mm
47,800 ULP782M4R0DAF1A0 210 4.8
6.3 6,600 ULP662M6R3DAF1A0 210 7.56
10 5,200 ULP522M010DAF1A0 210 12
16 3,600 ULP362M016DAF1A0 210 19.2
25 2,300 ULP232M025DAF1A0 210 30
35 1,400 ULP142M035DAF1A0 210 42
50 700 ULP701M050DAF1A0 210 60
63 500 ULP501M063DAF1A0 420 75.6
3 mm
424,000 ULP243M4R0DBF1A0 80 4.8
6.3 20,000 ULP203M6R3DBF1A0 80 7.56
10 15,000 ULP153M010DBF1A0 80 12
16 11,000 ULP113M016DBF1A0 80 19.2
25 6,900 ULP692M025DBF1A0 80 30
35 4,400 ULP442M035DBF1A0 80 42
50 2,200 ULP222M050DBF1A0 80 60
63 1,500 ULP152M063DBF1A0 160 75.6
ESR vs. Frequency & Temp ULP113MOIGDBF1I3 100 10 E E D] 0.01 1 ID 100 mm mono memo 1000000 Fwill!!! —ss —65 —45 —25 —a —-20 —-w —»55 Ill vs. Frequency & Temp ULP113M016DBF18 100 1,0 g DJ CLO) 10 lm mm mm memo 1000000 Freulflz) —55 —65 —45 —25 —o —-10 —-w —»55
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type ULP, 2 and 3 mm Ultra Low Profile Aluminum Electrolytic Capacitor, 85 ºC
Typical Performance Curves
