DPX165850DT-8086A1 Datasheet by TDK Corporation

@TDK
April 2019
RF Components
Multilayer Diplexer
For 698-2690MHz / 3400-5850MHz
DPX165850DT-8086A1
1.6x0.8mm [EIA 0603]*
* Dimensions Code JIS[EIA]
I_H_l __|7 1 END W W 4 H‘gh-EandPnn W W 03631
RF Components
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190402 / rf_dpx_dpx165850dt-8086a1_en.fm
Multilayer Diplexer
For 698-2690MHz / 3400-5850MHz
SHAPES AND DIMENSIONS
RECOMMENDED LAND PATTERN EVALUATION BOARD
DPX165850DT-8086A1
Conformity to RoHS Directive
0.80±0.10
1.60±0.10 0.65max.
0.22±0.05
Dimensions in mm
1 GND
2 Common Port
3 GND
4 High-Band Port
5 GND
6 Low-Band Port
Terminal functions
0.22±0.05
0.35±0.05
0.225±0.05
[Top view]
[Bottom view]
(1)(
2)(
3)
(6)(
5)(
4)
Marking
(4)(5)(6)
(3)(2)(1)
0.22
0.22
Dimensions in mm
0.225
0.35
Thru Hole
Resist
Surface Pattern
Material, Layer Thickness
Top resist
Copper Surface Pattern
FR-4
Copper Inner GND
FR-4
Copper Bottom GND
Resist
0.035mm
0.10mm
0.018mm
0.30mm
0.035mm
Line width should be designed to match 50Ω characteristic impedance,
depending on PCB material and thickness.
ø0.2
0.9760.61
0.978
Dimensions in mm
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
@TDK fl Q Q Q (C) (C) 03631
RF Components
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190402 / rf_dpx_dpx165850dt-8086a1_en.fm
DPX165850DT-8086A1
ELECTRICAL CHARACTERISTICS
LOW-BAND
・Ta: +25±5°C
HIGH-BAND
・Ta: +25±5°C
COMMON
・Ta: +25±5°C
TEMPERATURE RANGE
Item Frequency Range
(MHz) Min. Typ. Max.
Insertion Loss (dB) 698 to 2690 — 0.66 0.80
698 to 2690 — — 0.91 (–40 to +85°C)
Return Loss (dB) 698 to 2690 9.54 18.2 —
Attenuation (dB) 3400 to 3800 13 16.4 —
5150 to 5850 20 23.8 —
Power Handling (W) — — 2.0
Characteristic Impedance ()50 (Nominal)
Item Frequency Range
(MHz) Min. Typ. Max.
Insertion Loss (dB)
3400 to 3800 — 0.77 0.89
5150 to 5850 — 0.45 0.54
3400 to 3800 — — 0.96 (–40 to +85°C)
5150 to 5850 — — 0.64 (–40 to +85°C)
Return Loss (dB) 3400 to 3800 9.54 19.4 —
5150 to 5850 9.54 21.2 —
Attenuation (dB) 698 to 2690 14 16.6 —
10300 to 11700 18 23.4 —
Power Handling (W) — — 2.0
Characteristic Impedance ()50 (Nominal)
Item Frequency Range
(MHz) Min. Typ. Max.
Isolation (dB)
698 to 2690 14 15.8 —
3400 to 3800 13 16.6 —
5150 to 5850 20 23.6 —
Return Loss (dB)
698 to 2690 9.54 16.8 —
3400 to 3800 9.54 20.1 —
5150 to 5850 9.54 22.1 —
Characteristic Impedance ()50 (Nominal)
Operating temperature Storage temperature
（°C） （°C）
–40 to +85 –40 to +85
l \ \ (/ V
RF Components
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190402 / rf_dpx_dpx165850dt-8086a1_en.fm
DPX165850DT-8086A1

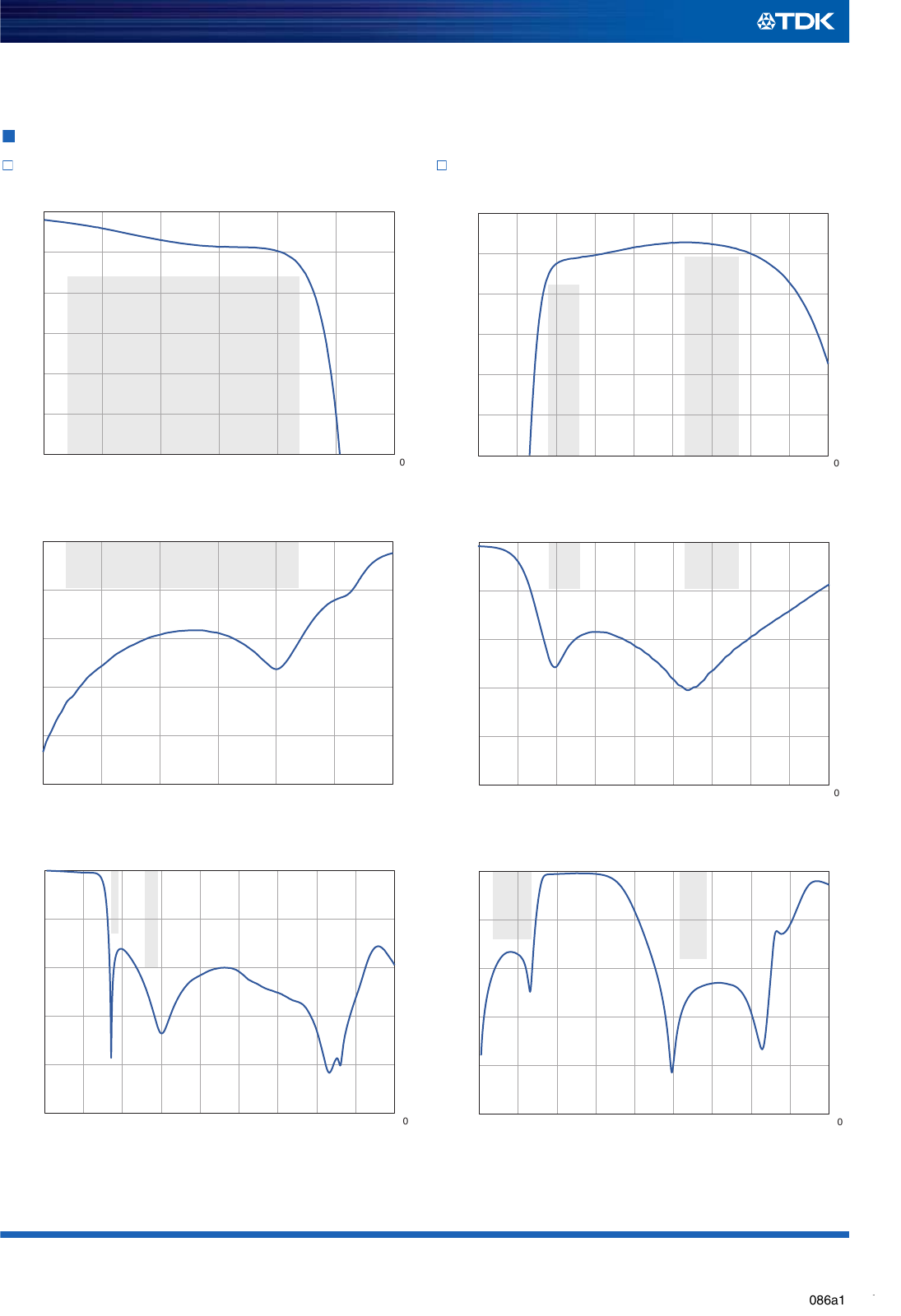

FREQUENCY CHARACTERISTICS
LOW-BAND
Insertion Loss
Return Loss
Attenuation
HIGH-BAND
Insertion Loss
Return Loss
Attenuation
3.0
0.5
1.0
2.0
2.5
1.5
0.0
Insertion Loss(dB)
3500
Frequency(MHz)
500 1000 1500 2500 30002000
50
40
30
10
20
0
Return Loss(dB)
3500
Frequency(MHz)
500 1000 1500 2500 30002000
Attenuation(dB)
50
40
30
10
20
0
18000
Frequency(MHz)
0 2000 12000 14000 16000100006000 80004000
50
40
30
10
20
0
Return Loss(dB)
7000
Frequency(MHz)
2500 3000 4000 5000 650060003500 4500 5500
Attenuation(dB)
50
40
30
10
20
0
18000
Frequency(MHz)
0 2000 12000 14000 16000100006000 80004000
03631
RF Components
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190402 / rf_dpx_dpx165850dt-8086a1_en.fm
DPX165850DT-8086A1
FREQUENCY CHARACTERISTICS
COMMON
Return Loss Isolation
50
40
30
10
20
0
Return Loss(dB)
18000
Frequency(MHz)
0 2000 12000 14000 16000100006000 80004000
50
10
20
40
30
0
Isolation(dB)
18000
Frequency(MHz)
0 2000 12000 14000 16000100006000 80004000
RF Components
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190402 / rf_dpx_dpx165850dt-8086a1_en.fm
DPX165850DT-8086A1
RECOMMENDED REFLOW PROFILE
t3 : Time within 5°C of actual peak temperature
The maximum number of reflow is 3.
Preheating Soldering
Critical zone (T3 to T4) Peak
Temp. Time Temp. Time Temp. Time
T1 T2 t1 T3 t2 T4 t3
150°C 200°C 60 to 120sec 217°C 60 to 120sec 240 to 260°C 30sec max.
t3
t1
Preheating
t2
Soldering
T3 T3
T4
T2
T1
t:
Time
T:
Temperature
Peak
6°C/sec
or lower
3°C/sec
or lower
.AAVTDK oasa1
RF Components
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20190402 / rf_dpx_dpx165850dt-8086a1_en.fm
