PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
12 August 2014 Product data sheet
1. General description
PNP high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a medium
power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.
NPN complement: PBHV8560Z
2. Features and benefits
High voltage
Low collector-emitter saturation voltage VCEsat
High collector current capability IC
High collector current gain hFE at high IC
AEC-Q101 qualified
3. Applications
Electronic ballast for fluorescent lighting
LED driver for LED chain module
LCD backlighting
HID front lighting
Automotive motor management
Hook switch for wired telecom
Switch Mode Power Supply (SMPS)
4. Quick reference data
Table 1. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter
voltage
open base - - -600 V
ICcollector current - - -0.5 A
hFE DC current gain VCE = -10 V; IC = -50 mA; Tamb = 25 °C 70 130 -
PBHV95602 2,4 symME nuntm-avznw unmumm
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 2 / 14
5. Pinning information
Table 2. Pinning information
Pin Symbol Description Simplified outline Graphic symbol
1 B base
2 C collector
3 E emitter
4 C collector
1 32
4
SC-73 (SOT223)
sym028
2, 4
3
1
6. Ordering information
Table 3. Ordering information
PackageType number
Name Description Version
PBHV9560Z SC-73 plastic surface-mounted package with increased heatsink; 4
leads
SOT223
7. Marking
Table 4. Marking codes
Type number Marking code
PBHV9560Z HV956Z
PBHV95602 5534113702 nmb a Mum": av 10w mm; mmfl
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 3 / 14
8. Limiting values
Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VCBO collector-base voltage open emitter - -600 V
VCEO collector-emitter voltage open base - -600 V
VCESM collector-emitter peak voltage VBE = 0 V - -600 V
VEBO emitter-base voltage open collector - -6 V
ICcollector current - -0.5 A
[1] - 0.65 WPtot total power dissipation Tamb ≤ 25 °C
[2] - 1.4 W
Tjjunction temperature - 150 °C
Tamb ambient temperature -55 150 °C
Tstg storage temperature -65 150 °C
[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard
footprint.
[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 6 cm2.
aaa-013702
Tamb (°C)
-60 18010020
0.8
0.4
1.2
1.6
Ptot
(W)
0
(1)
(2)
(1) FR4 PCB, mounting pad for collector 6 cm2
(2) FR4 PCB, standard footprint

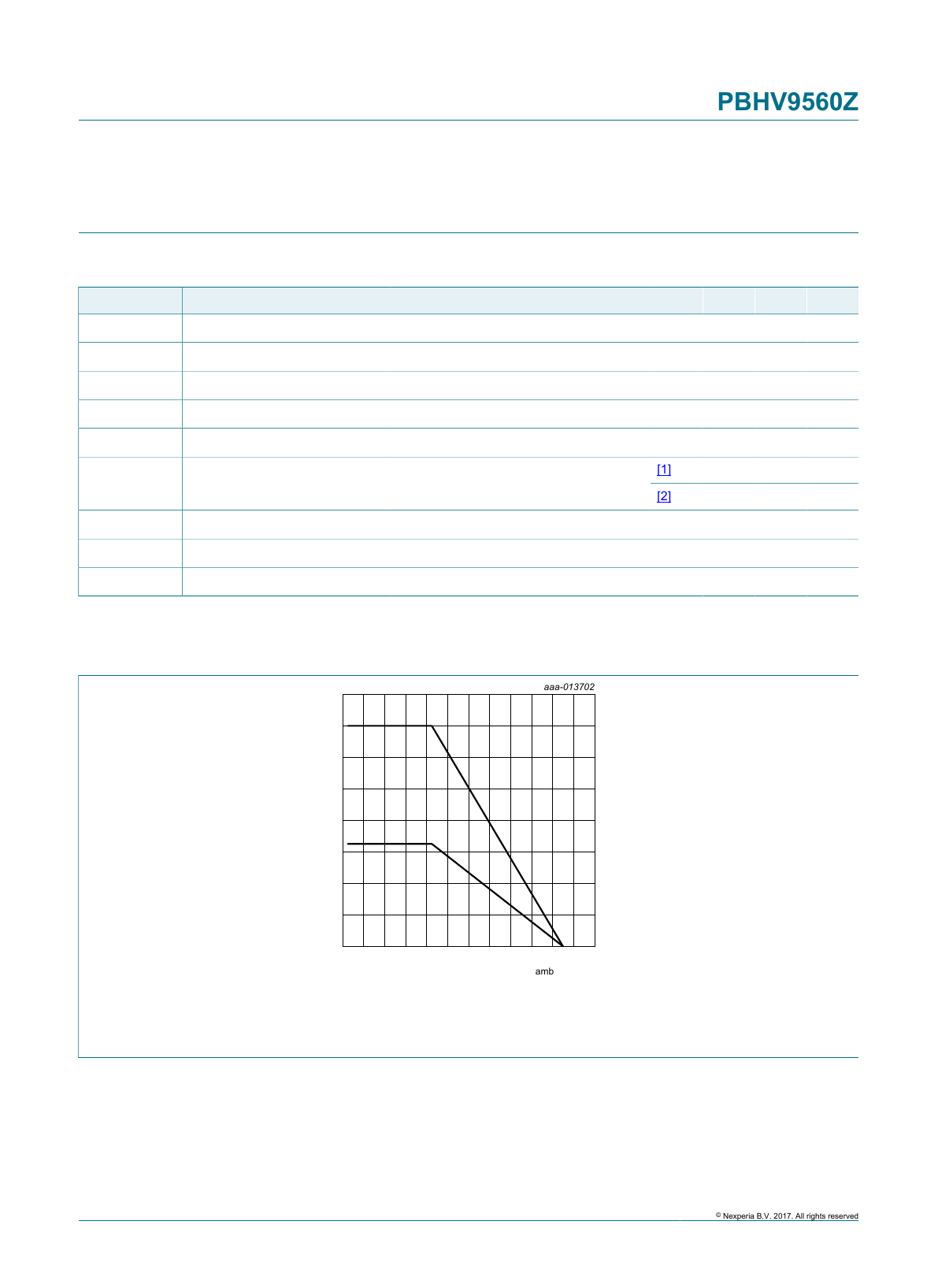

Fig. 1. Power derating curves
PBHV95602 5557013425 5557013427 .mpmav 200 NM h'ivesqmfl
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 4 / 14
9. Thermal characteristics
Table 6. Thermal characteristics
Symbol Parameter Conditions Min Typ Max Unit
[1] - - 190 K/WRth(j-a) thermal resistance
from junction to
ambient
in free air
[2] - - 89 K/W
Rth(j-sp) thermal resistance
from junction to solder
point
- - 20 K/W
[1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 6 cm2.
aaa-013426
10
1
102
103
Zth(j-a)
(K/W)
10-1
10-5 1010-2
10-4 102
10-1
tp (s)
10-3 103
1
0
duty cycle = 1
0.01
0.02
0.05
0.1
0.2
0.33
0.5
0.75
FR4 PCB, single-sided copper, tin-plated and standard footprint.

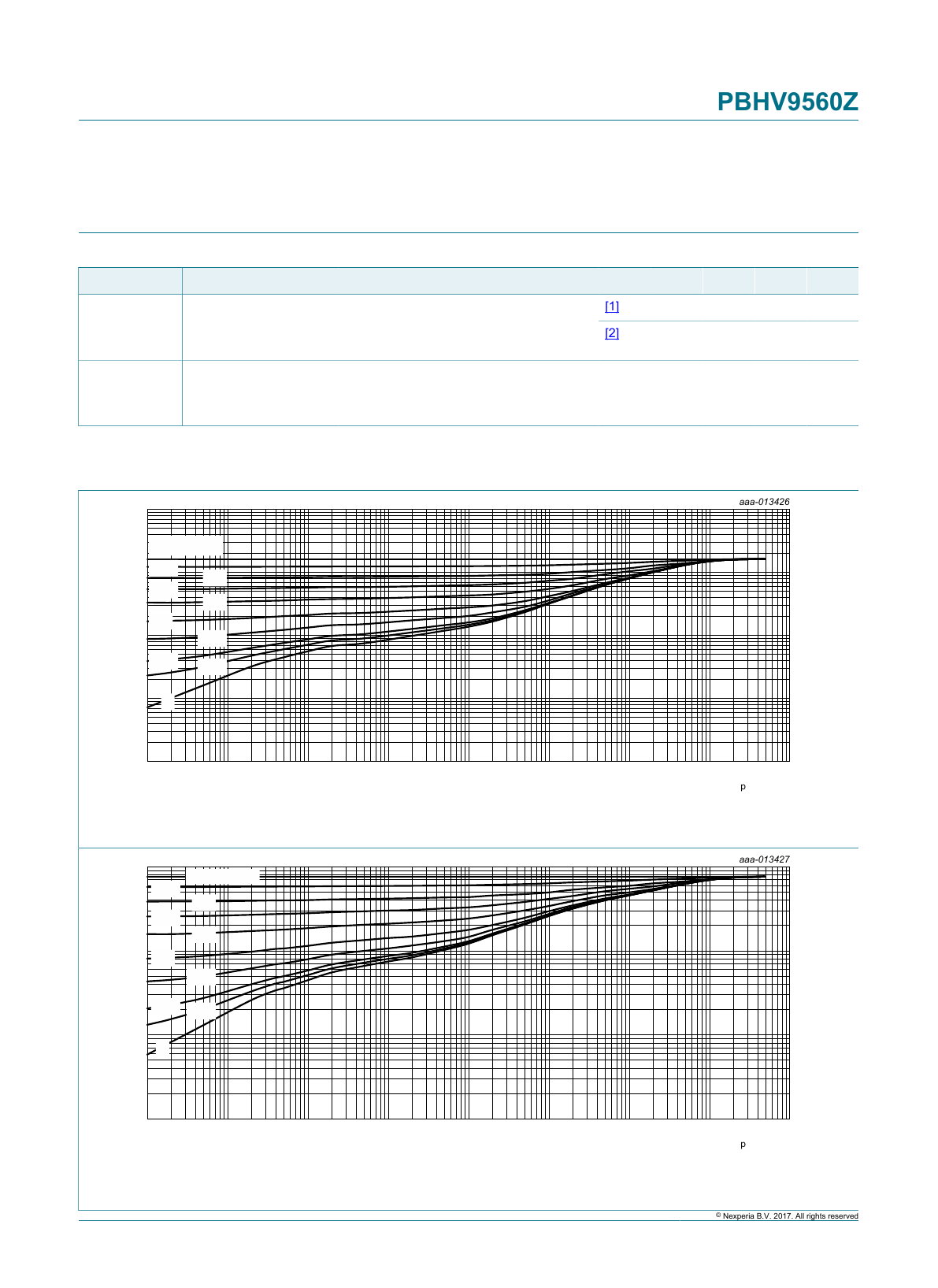

Fig. 2. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
aaa-013427
10-5 1010-2
10-4 102
10-1
tp (s)
10-3 103
1
10
1
102
Zth(j-a)
(K/W)
10-1
0
duty cycle = 1
0.01
0.02
0.05
0.1
0.2
0.33
0.5
0.75
FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 6 cm2.
Fig. 3. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
PBHV95602 .anmn "mum.”
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 5 / 14
10. Characteristics
Table 7. Characteristics
Symbol Parameter Conditions Min Typ Max Unit
VCB = -400 V; IE = 0 A; Tamb = 25 °C - - -100 nAICBO collector-base cut-off
current VCB = -400 V; IE = 0 A; Tj = 150 °C - - -10 µA
ICES collector-emitter cut-off
current
VCE = -400 V; VBE = 0 V; Tamb = 25 °C - - -100 nA
IEBO emitter-base cut-off
current
VEB = -5 V; IC = 0 A; Tamb = 25 °C - - -100 nA
VCE = -10 V; IC = -50 mA; Tamb = 25 °C 70 130 -hFE DC current gain
VCE = -10 V; IC = -100 mA; pulsed;
tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C
50 90 -
IC = -50 mA; IB = -5 mA; Tamb = 25 °C - -150 -250 mVVCEsat collector-emitter
saturation voltage IC = -100 mA; IB = -20 mA; pulsed;
tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C
- -140 -250 mV
VBEsat base-emitter saturation
voltage
IC = -50 mA; IB = -5 mA; pulsed;
tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C
- - -900 mV
fTtransition frequency VCE = -10 V; IC = -30 mA; f = 100 MHz - 38 - MHz
Cccollector capacitance VCB = -20 V; IE = 0 A; ie = 0 A;
f = 1 MHz; Tamb = 25 °C
- 12 - pF
Ceemitter capacitance VEB = -0.5 V; IC = 0 A; ic = 0 A;
f = 1 MHz; Tamb = 25 °C
- 390 - pF
PBHV95602 5337913530 aaarflwflfi c c .- / T " /”—' ,--.— ’r ,-. . / /,-_ .mpmav 200 NM h'ivesqmfl
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 6 / 14
aaa-013680
100
200
300
hFE
0
IC (mA)
-10-1 -103
-102
-1 -10
(1)
(2)
(3)
VCE = −10 V
(1) Tamb = 100 °C
(2) Tamb = 25 °C
(3) Tamb = −55 °C
Fig. 4. DC current gain as a function of collector
current; typical values
aaa-014036
100
50
150
200
hFE
0
IC (mA)
-10-1 -103
-102
-1 -10
(1) (2) (3)
hFE = f(IC)
Tamb = 25 °C
(1) VCE = -10 V
(2) VCE = -25 V
(3) VCE = -50 V
Fig. 5. DC current gain as a function of collector
current; typical values
VCE (V)
0 -5-4-2 -3-1
aaa-013681
-0.2
-0.3
-0.1
-0.4
-0.5
IC
(A)
0
IB = -200 mA
-80 mA
-60 mA
-40 mA
-20 mA
-180 mA
-140 mA
-160 mA
-120 mA -100 mA
Tamb = 25 °C
Fig. 6. Collector current as a function of collector-
emitter voltage; typical values
aaa-013682
-0.4
-0.8
-1.2
VBE
(V)
0
IC (mA)
-10-1 -103
-102
-1 -10
(1)
(2)
(3)
VCE = −5 V
(1) Tamb = −55 °C
(2) Tamb = 25 °C
(3) Tamb = 100 °C
Fig. 7. Base-emitter voltage as a function of collector
current; typical values
PBHV95602 5537013683 3557013634 5537013685 asarflYflSSfi .leplniEV zen m h'ivswmfl
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 7 / 14
aaa-013683
-0.6
-0.8
-0.4
-1.0
-1.2
VBEsat
(V)
-0.2
IC (mA)
-10-1 -103
-102
-1 -10
(1)
(2)
(3)
IC/IB = 10
(1) Tamb = −55 °C
(2) Tamb = 25 °C
(3) Tamb = 100 °C

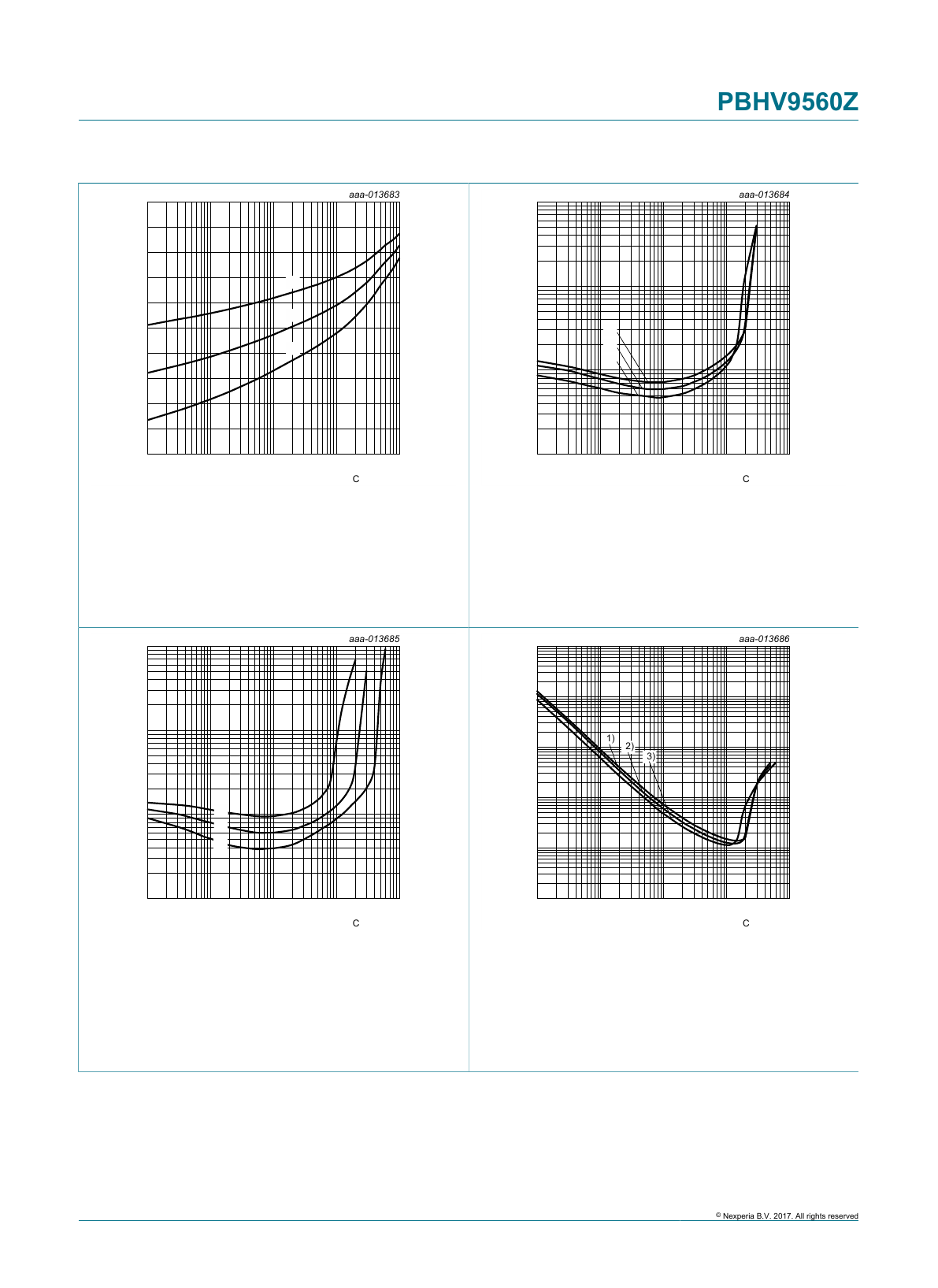

Fig. 8. Base-emitter saturation voltage as a function of
collector current; typical values
aaa-013684
-1
-10-1
-10
VCEsat
(V)
-10-2
IC (mA)
-10-1 -103
-102
-1 -10
(3)
(1)
(2)
IC/IB = 5
(1) Tamb = 100 °C
(2) Tamb = 25 °C
(3) Tamb = −55 °C
Fig. 9. Collector-emitter saturation voltage as a
function of collector current; typical values
aaa-013685
-1
-10-1
-10
VCEsat
(V)
-10-2
IC (mA)
-10-1 -103
-102
-1 -10
(1)
(2)
(3)
Tamb = 25 °C
(1) IC/IB = 10.0
(2) IC/IB = 5.0
(3) IC/IB = 2.5
Fig. 10. Collector-emitter saturation voltage as a
function of collector current; typical values
aaa-013686
10
1
103
102
104
RCEsat
(Ω)
10-1
IC (mA)
-10-1 -103
-102
-1 -10
(1) (2)
(3)
IC/IB = 5
(1) Tamb = 100 °C
(2) Tamb = 25 °C
(3) Tamb = −55 °C
Fig. 11. Collector-emitter saturation resistance as a
function of collector current; typical values
PBHV95602 555 013557 .leplnaEV zen N‘V‘gh'iveslmfl
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 8 / 14
aaa-013687
10
1
103
102
104
RCEsat
(Ω)
10-1
IC (mA)
-10-1 -103
-102
-1 -10
(1)
(2)
(3)
Tamb = 25 °C
(1) IC/IB = 10.0
(2) IC/IB = 5.0
(3) IC/IB = 2.5
Fig. 12. Collector-emitter saturation resistance as a function of collector current; typical values
11. Test information
11.1 Quality information
This product has been qualified in accordance with the Automotive Electronics Council
(AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is
suitable for use in automotive applications.
PBHV95602 Plastic surface-mounted package with increased heatsink; 4 leads SOT223 ‘54 +1 "I EQM .leplnaEV zen mun-“am
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 9 / 14
12. Package outline
UNIT A1bpc D E e1HELpQ ywv
REFERENCES
OUTLINE
VERSION
EUROPEAN
PROJECTION ISSUE DATE
IEC JEDEC JEITA
mm 0.10
0.01
1.8
1.5
0.80
0.60
b1
3.1
2.9
0.32
0.22
6.7
6.3
3.7
3.3 2.3
e
4.6 7.3
6.7
1.1
0.7
0.95
0.85 0.1 0.10.2
DIMENSIONS (mm are the original dimensions)
SOT223 SC-73 04-11-10
06-03-16
wM
bp
D
b1
e1
e
A
A1
Lp
Q
detail X
HE
E
vMA
AB
B
c
y
0 2 4 mm
scale
A
X
1 32
4
Plastic surface-mounted package with increased heatsink; 4 leads SOT223

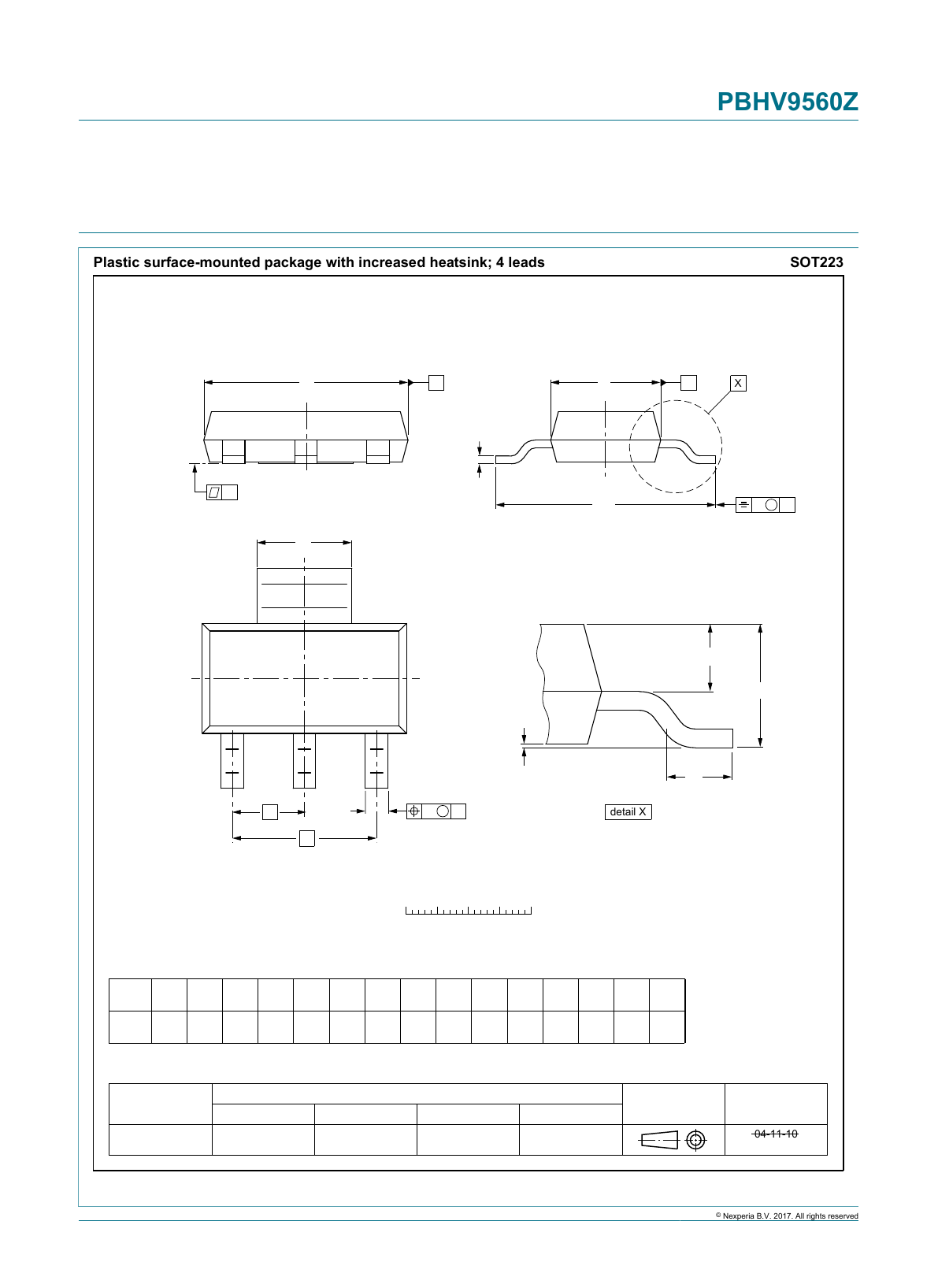

Fig. 13. Package outline SC-73 (SOT223)
PBHV95602 50(223 0 391223 Iw i] J ‘4 ....... i ..... Mn-" "111,793, j “““ 4, i , :T 9w 4, i L a "W W i 7% Ga % i 7T,” ML . / i 1L1; JL Tl+i HIE“ m i/ T+i%:w\ , i , 3 4 a i , J , . r h 1; 1 7 ,W 7 W i a ll, ,7 W 7 fi‘.‘m ,,,,, 1 i %1 ¢ ,, “““““ H “““ m MU :NvalnaEV 20w Munmsmmu
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 10 / 14
13. Soldering
sot223_fr
1.2
(4×)
1.2
(3×)
1.3
(4×)
1.3
(3×)
6.15
7
3.85
3.6
3.5
0.3
3.9 7.65
2.3 2.3
6.1
4
2 31
solder lands
solder resist
occupied area
solder paste
Dimensions in mm
Fig. 14. Reflow soldering footprint for SC-73 (SOT223)
sot223_fw
1.9
6.7
8.9
8.7
1.9
(3×)
1.9
(2×)
1.1
6.2
2.7 2.7
2
4
31
solder lands
solder resist
occupied area
preferred transport
direction during soldering
Dimensions in mm
Fig. 15. Wave soldering footprint for SC-73 (SOT223)
PBHV95602 nuntm-avznw unmumm
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 11 / 14
14. Revision history
Table 8. Revision history
Data sheet ID Release date Data sheet status Change notice Supersedes
PBHV9560Z v.1 20140812 Product data sheet - -
cl he m sign. ala sneer is explained in s o: device‘s) described 5 document was publis he Islesl pmduct stat mgr/wwwnexgna PBHV95602 ms Mcummerclal sale 7 Nexpsr meet to me general terms and can My llwww nexg a cam/Emf all a Mum-u Ev 2m mm mmfl
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 12 / 14
15. Legal information
15.1 Data sheet status
Document
status [1][2]
Product
status [3]
Definition
Objective
[short] data
sheet
Development This document contains data from
the objective specification for product
development.
Preliminary
[short] data
sheet
Qualification This document contains data from the
preliminary specification.
Product
[short] data
sheet
Production This document contains the product
specification.
[1] Please consult the most recently issued document before initiating or
completing a design.
[2] The term 'short data sheet' is explained in section "Definitions".
[3] The product status of device(s) described in this document may have
changed since this document was published and may differ in case of
multiple devices. The latest product status information is available on
the Internet at URL http://www.nexperia.com.
15.2 Definitions
Preview — The document is a preview version only. The document is still
subject to formal approval, which may result in modifications or additions.
Nexperia does not give any representations or warranties as to
the accuracy or completeness of information included herein and shall have
no liability for the consequences of use of such information.
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. Nexperia does not give any
representations or warranties as to the accuracy or completeness of
information included herein and shall have no liability for the consequences
of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is
intended for quick reference only and should not be relied upon to contain
detailed and full information. For detailed and full information see the
relevant full data sheet, which is available on request via the local Nexperia
sales office. In case of any inconsistency or conflict with the
short data sheet, the full data sheet shall prevail.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
Nexperia and its customer, unless Nexperia and
customer have explicitly agreed otherwise in writing. In no event however,
shall an agreement be valid in which the Nexperia product
is deemed to offer functions and qualities beyond those described in the
Product data sheet.
15.3 Disclaimers
Limited warranty and liability — Information in this document is believed
to be accurate and reliable. However, Nexperia does not give
any representations or warranties, expressed or implied, as to the accuracy
or completeness of such information and shall have no liability for the
consequences of use of such information. Nexperia takes no
responsibility for the content in this document if provided by an information
source outside of Nexperia.
In no event shall Nexperia be liable for any indirect, incidental,
punitive, special or consequential damages (including - without limitation -
lost profits, lost savings, business interruption, costs related to the removal
or replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Notwithstanding any damages that customer might incur for any reason
whatsoever, Nexperia’s aggregate and cumulative liability towards
customer for the products described herein shall be limited in accordance
with the Terms and conditions of commercial sale of Nexperia.
Right to make changes — Nexperia reserves the right to
make changes to information published in this document, including without
limitation specifications and product descriptions, at any time and without
notice. This document supersedes and replaces all information supplied prior
to the publication hereof.
Suitability for use in automotive applications — This Nexperia
product has been qualified for use in automotive
applications. Unless otherwise agreed in writing, the product is not designed,
authorized or warranted to be suitable for use in life support, life-critical or
safety-critical systems or equipment, nor in applications where failure or
malfunction of a Nexperia product can reasonably be expected
to result in personal injury, death or severe property or environmental
damage. Nexperia and its suppliers accept no liability for
inclusion and/or use of Nexperia products in such equipment or
applications and therefore such inclusion and/or use is at the customer's own
risk.
Quick reference data — The Quick reference data is an extract of the
product data given in the Limiting values and Characteristics sections of this
document, and as such is not complete, exhaustive or legally binding.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. Nexperia makes no
representation or warranty that such applications will be suitable for the
specified use without further testing or modification.
Customers are responsible for the design and operation of their
applications and products using Nexperia products, and Nexperia
accepts no liability for any assistance with applications or
customer product design. It is customer’s sole responsibility to determine
whether the Nexperia product is suitable and fit for the
customer’s applications and products planned, as well as for the planned
application and use of customer’s third party customer(s). Customers should
provide appropriate design and operating safeguards to minimize the risks
associated with their applications and products.
Nexperia does not accept any liability related to any default,
damage, costs or problem which is based on any weakness or default
in the customer’s applications or products, or the application or use by
customer’s third party customer(s). Customer is responsible for doing all
necessary testing for the customer’s applications and products using Nexperia
products in order to avoid a default of the applications
and the products or of the application or use by customer’s third party
customer(s). Nexperia does not accept any liability in this respect.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those
given in the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
Terms and conditions of commercial sale Nexperia
products are sold subject to the general terms and conditions of commercial
sale, as published at http://www.nexperia.com/profile/terms, unless otherwise
agreed in a valid written individual agreement. In case an individual
agreement is concluded only the terms and conditions of the respective
agreement shall apply. Nexperia hereby expressly objects to
applying the customer’s general terms and conditions with regard to the
purchase of Nexperia products by customer.
PBHV95602 nurw-mavznw "mum"...
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 13 / 14
No offer to sell or license — Nothing in this document may be interpreted
or construed as an offer to sell products that is open for acceptance or the
grant, conveyance or implication of any license under any copyrights, patents
or other industrial or intellectual property rights.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
15.4 Trademarks
Notice: All referenced brands, product names, service names and
trademarks are the property of their respective owners.
PBHV95602 n m... av mm mm mm
© Nexperia B.V. 2017. All rights reserved
Nexperia PBHV9560Z
600 V, 0.5 A PNP high-voltage low VCEsat (BISS) transistor
PBHV9560Z All information provided in this document is subject to legal disclaimers.
Product data sheet 12 August 2014 14 / 14
16. Contents
1 General description ............................................... 1
2 Features and benefits ............................................1
3 Applications ........................................................... 1
4 Quick reference data ............................................. 1
5 Pinning information ............................................... 2
6 Ordering information .............................................2
7 Marking ................................................................... 2
8 Limiting values .......................................................3
9 Thermal characteristics .........................................4
10 Characteristics .......................................................5
11 Test information ..................................................... 8
11.1 Quality information ............................................... 8
12 Package outline ..................................................... 9
13 Soldering .............................................................. 10
14 Revision history ...................................................11
15 Legal information .................................................12
15.1 Data sheet status ............................................... 12
15.2 Definitions ...........................................................12
15.3 Disclaimers .........................................................12
15.4 Trademarks ........................................................ 13
© Nexperia B.V. 2017. All rights reserved
For more information, please visit: http://www.nexperia.com
For sales office addresses, please send an email to: salesaddresses@nexperia.com
Date of release:
12 August 2014
