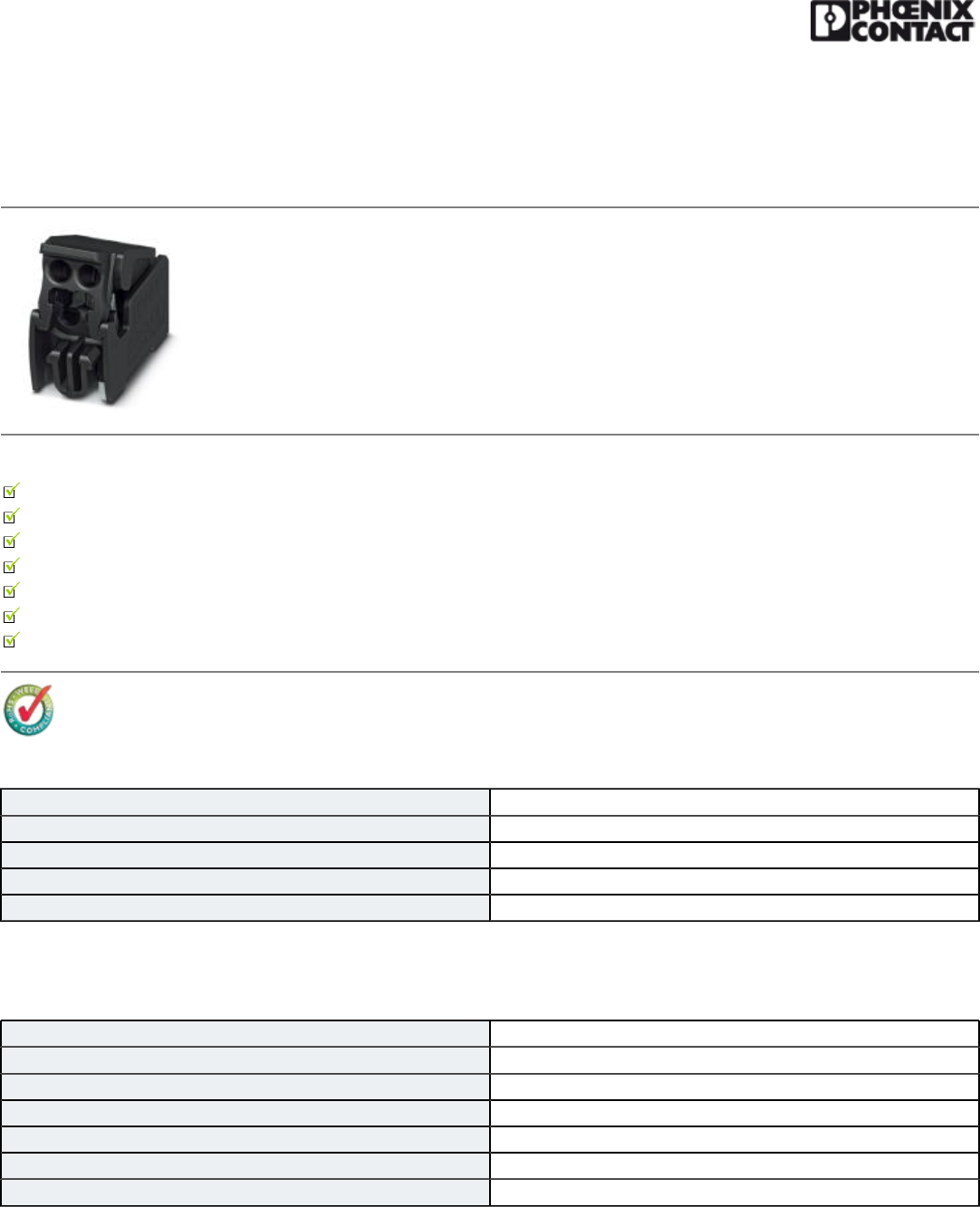

PCB terminal block-PTQ 0,3/ 2-2,5 THR R32-1702610
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
PCB terminal block, Nominal current: 4 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 2,
Connection method: Insulation displacement connection QUICKON, Mounting: SMD/THT/THR, Conductor/PCB
connection direction: 0 °, Color: black
Product Features
Visual inspection of the conductor position possible
Conductor connection without pretreatment
2.5 mm pitch
THR solderable
Taped as standard
Supplied in tape-on-reel packing according to IEC 60286-3 for automated mounting
Secure snap-on mechanism
Key commercial data
Packing unit 1 pc
Minimum order quantity 250 pc
Weight per Piece (excluding packing) 2.64 GRM
Custom tariff number 85369010
Country of origin Germany
Technical data
Dimensions
Length 17.55 mm
Height 8 mm
Width 7 mm
Pitch 2.5 mm
Dimension a 2.5 mm
Pin dimensions 0,9 x 0,4
Pin spacing 2.5 mm
PHGNIX CON'I'ACI'
https://www.phoenixcontact.com/us/products/1702610
03/17/2014Page2/5
PCB terminal block-PTQ 0,3/ 2-2,5 THR R32-1702610
Technical data
Dimensions
Hole diameter 1.1 mm
General
Range of articles PTQ 0,3/..-THR
Insulating material group IIIa
Rated surge voltage (III/3) 2.5 kV
Rated surge voltage (III/2) 2.5 kV
Rated surge voltage (II/2) 2.5 kV
Rated voltage (III/3) 160 V
Rated voltage (III/2) 160 V
Rated voltage (II/2) 200 V
Nominal current IN4 A
Nominal cross section 0.34 mm²
Maximum load current 4 A
Insulating material LCP
Solder pin surface Sn
Inflammability class according to UL 94 V0
Number of positions 2
Connection data
Conductor cross section solid min. 0.14 mm²
Conductor cross section solid max. 0.34 mm²
Conductor cross section stranded min. 0.14 mm²
Conductor cross section stranded max. 0.34 mm²
Conductor cross section AWG/kcmil min. 26
Conductor cross section AWG/kcmil max 22
Maximum AWG according to UL/CUL 24
Wire diameter incl. insulation 1.6 mm (Terminal block is tested with PVC insulation - other insulation
materials available on request)
Classifications
eCl@ss
eCl@ss 4.0 272607xx
eCl@ss 4.1 27141109
eCl@ss 5.0 27141190
eCl@ss 5.1 27141190
eCl@ss 6.0 27261101
PHGNIX CONTACT
https://www.phoenixcontact.com/us/products/1702610
03/17/2014Page3/5
PCB terminal block-PTQ 0,3/ 2-2,5 THR R32-1702610
Classifications
eCl@ss
eCl@ss 7.0 27440401
eCl@ss 8.0 27440401
ETIM
ETIM 4.0 EC002643
ETIM 5.0 EC002643
UNSPSC
UNSPSC 6.01 30211801
UNSPSC 7.0901 39121432
UNSPSC 11 34131203
UNSPSC 12.01 39121432
UNSPSC 13.2 39121432
Approvals
Approvals
Approvals
UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / CCA / IECEE CB Scheme / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
 B
mm²/AWG/kcmil 24
Nominal current IN 2 A
Nominal voltage UN 150 V
PHGNIX CON'I'ACI' c“ I):
https://www.phoenixcontact.com/us/products/1702610
03/17/2014Page4/5
PCB terminal block-PTQ 0,3/ 2-2,5 THR R32-1702610
Approvals
VDE Gutachten mit Fertigungsüberwachung
 
Nominal current IN 4 A
Nominal voltage UN 130 V
cUL Recognized
 B
mm²/AWG/kcmil 24
Nominal current IN 2 A
Nominal voltage UN 150 V
CCA
 
mm²/AWG/kcmil 0.2-2.5
Nominal current IN 4 A
Nominal voltage UN 130 V
IECEE CB Scheme
 
mm²/AWG/kcmil 0.2-2.5
Nominal current IN 4 A
Nominal voltage UN 130 V
cULus Recognized
Drawings
[923%
https://www.phoenixcontact.com/us/products/1702610
03/17/2014Page5/5
PCB terminal block-PTQ 0,3/ 2-2,5 THR R32-1702610

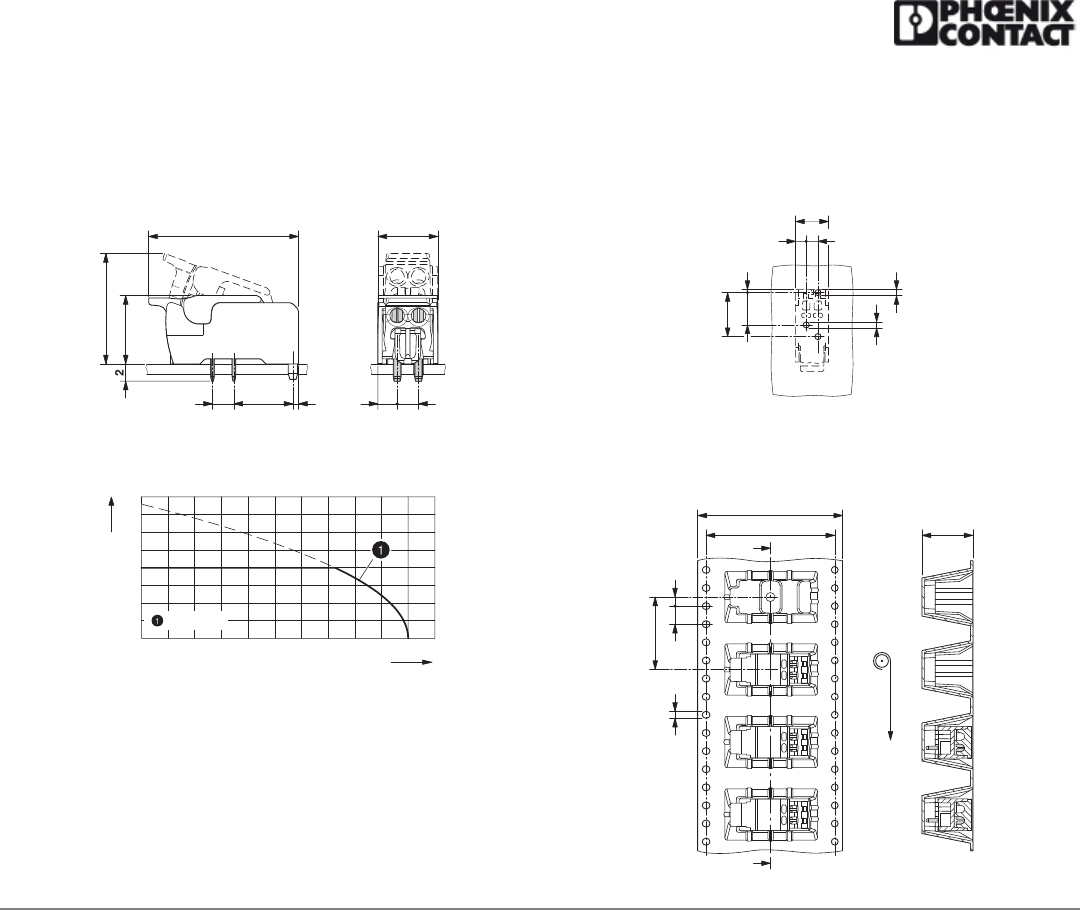

Dimensioned drawing
2,25 2,5
7
17,5
0,65
6,9
2,5
8
2
12,9
Drilling diagram
7
2,5
2,25
6,9
9,4
0,65
Ø1,1
Ø1,1
Diagram
100806040200
0
2
1
4
3
6
5
8
7
=0,34mm2
Ambienttemperature[°C]
Currentstrength [A]
Type: PTQ 0,3/..-2,5(-L) THR R32
Dimensioned drawing
11,2
32
28,4
2
4
16
Ø1,5
